Solid Carbide Taper Endmills : BTM-61

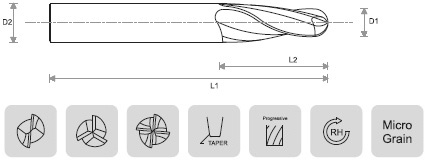

| PRODUCT CODE | TIP DIA | FLUTE LENGTH | OVERALL LENGTH | SHANK DIA | TAPER ANGLE | NO. OF TEETH |
|---|---|---|---|---|---|---|
| D1 | L2 | L1 | D2 | α° | Z | |
| BTM-61-01020 | 2 | 10 | 40 | 3 | 1 | 2 |
| BTM-61-01040 | 4 | 20 | 60 | 5 | 1 | 3 |
| BTM-61-01060 | 6 | 30 | 75 | 8 | 1 | 3 |
| BTM-61-01080 | 8 | 30 | 80 | 10 | 1 | 4 |
| BTM-61-01100 | 10 | 30 | 80 | 12 | 1 | 4 |
| BTM-61-02010 | 1 | 4 | 40 | 3 | 2 | 2 |
| BTM-61-02020 | 2 | 10 | 40 | 3 | 2 | 2 |
| BTM-61-02040 | 4 | 20 | 65 | 6 | 2 | 3 |
| BTM-61-02050 | 5 | 30 | 75 | 8 | 2 | 3 |
| BTM-61-02010 | 10 | 28 | 80 | 12 | 2 | 4 |
| BTM-61-03010 | 1 | 4 | 40 | 3 | 3 | 2 |
| BTM-61-03015 | 1.5 | 6 | 50 | 4 | 3 | 2 |
| BTM-61-03025 | 2.5 | 20 | 65 | 6 | 3 | 3 |
| BTM-61-03030 | 3 | 30 | 75 | 8 | 3 | 3 |
| BTM-61-03060 | 6 | 55 | 110 | 12 | 3 | 3 |
| BTM-61-03080 | 8 | 30 | 80 | 12 | 3 | 4 |
| BTM-61-05010 | 1 | 4 | 40 | 3 | 5 | 2 |
| BTM-61-05015 | 1.5 | 6 | 40 | 3 | 5 | 2 |
| BTM-61-05020 | 2 | 10 | 50 | 4 | 5 | 2 |
| BTM-61-05025 | 2.5 | 20 | 65 | 6 | 5 | 3 |
| BTM-61-06030 | 3 | 28 | 70 | 8 | 5 | 3 |
| BTM-61-05040 | 4 | 22 | 65 | 8 | 5 | 3 |
| BTM-61-05050 | 5 | 40 | 100 | 12 | 5 | 3 |
| BTM-61-05060 | 6 | 32 | 90 | 12 | 5 | 3 |
| BTM-61-05061 | 6 | 55 | 110 | 16 | 5 | 3 |
| BTM-61-05100 | 10 | 32 | 90 | 16 | 5 | 4 |
| BTM-61-05101 | 10 | 55 | 115 | 20 | 5 | 4 |
| BTM-61-07025 | 2.5 | 22 | 65 | 8 | 7 | 3 |
| BTM-61-07050 | 5 | 28 | 80 | 12 | 7 | 3 |
| BTM-61-08080 | 8 | 35 | 90 | 18 | 8 | 4 |
| BTM-61-10025 | 2.5 | 20 | 75 | 10 | 10 | 3 |
| BTM-61-10030 | 3 | 30 | 90 | 14 | 10 | 3 |
| BTM-61-10050 | 5 | 30 | 90 | 16 | 10 | 3 |
| BTM-61-10080 | 8 | 32 | 90 | 20 | 10 | 4 |
| BTM-61-11020 | 2 | 20 | 75 | 10 | 11 | 3 |
| BTM-61-11050 | 5 | 20 | 80 | 14 | 11 | 3 |
| BTM-61-15025 | 2.5 | 20 | 80 | 14 | 15 | 3 |
| BTM-61-15040 | 4 | 15 | 65 | 12 | 15 | 3 |
| BTM-61-15065 | 6.5 | 10 | 65 | 12 | 15 | 3 |
| BTM-61-15066 | 6.5 | 25 | 90 | 20 | 15 | 3 |
| BTM-61-15080 | 8 | 20 | 80 | 20 | 15 | 4 |
| BTM-61-20025 | 2.5 | 10 | 75 | 10 | 20 | 3 |
| BTM-61-20045 | 4.5 | 15 | 90 | 16 | 20 | 4 |
| BTM-61-30025 | 2.5 | 10 | 75 | 14 | 30 | 3 |
| BTM-61-30014 | 4.5 | 16 | 90 | 24 | 30 | 4 |
| BTM-61-45025 | 2.5 | 10 | 75 | 22 | 45 | 3 |
| BTM-61-45045 | 4.5 | 14 | 90 | 32 | 45 | 4 |
All Dimensions in MM
Also offered on request in :
- Inches and intermediate diameters.
- Any taper angle.
- Centre cutting.
- Special corner chamfer/radius.
- Left hand/right hand helix.
- Various numbers of flutes.
- Special flute length and overall length.
- Special coatings to enhance tool life.
- Lugged design for bigger diameter.
- Special shank (Weldon, whistle notch, etc.)
