Solid Carbide Spade Drills : BPD-88

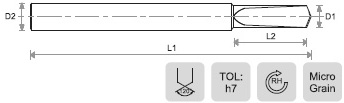

| PRODUCT CODE | DRILL DIA | FLUTE LENGTH | OVERALL LENGTH | SHANK DIA |
|---|---|---|---|---|
| D1 | L2 | L1 | D2 | |
| BPD-88-010 | 1.0 | 8 | 38 | 3.0 |
| BPD-88-011 | 1.1 | 8 | 38 | 3.0 |
| BPD-88-012 | 1.2 | 8 | 38 | 3.0 |
| BPD-88-013 | 1.3 | 8 | 38 | 3.0 |
| BPD-88-014 | 1.4 | 8 | 38 | 3.0 |
| BPD-88-015 | 1.5 | 8 | 38 | 3.0 |
| BPD-88-016 | 1.6 | 8 | 38 | 3.0 |
| BPD-88-017 | 1.7 | 8 | 38 | 3.0 |
| BPD-88-018 | 1.8 | 8 | 38 | 3.0 |
| BPD-88-019 | 1.9 | 8 | 38 | 3.0 |
| BPD-88-020 | 2.0 | 9 | 38 | 3.0 |
| BPD-88-021 | 2.1 | 9 | 38 | 3.0 |
| BPD-88-022 | 2.2 | 9 | 38 | 3.0 |
| BPD-88-023 | 2.3 | 9 | 38 | 3.0 |
| BPD-88-024 | 2.4 | 9 | 38 | 3.0 |
| BPD-88-025 | 2.5 | 10 | 38 | 3.0 |
| BPD-88-026 | 2.6 | 10 | 38 | 3.0 |
| BPD-88-027 | 2.7 | 10 | 38 | 3.0 |
| BPD-88-028 | 2.8 | 10 | 38 | 3.0 |
| BPD-88-029 | 2.9 | 10 | 38 | 3.0 |
| BPD-88-030 | 3.0 | 10 | 38 | 3.0 |
| BPD-88-031 | 3.1 | 20 | 50 | 4.0 |
| BPD-88-032 | 3.2 | 20 | 50 | 4.0 |
| BPD-88-033 | 3.3 | 20 | 50 | 4.0 |
| BPD-88-034 | 3.4 | 20 | 50 | 4.0 |
| BPD-88-035 | 3.5 | 20 | 50 | 4.0 |
| BPD-88-040 | 4.0 | 20 | 50 | 4.0 |
| BPD-88-045 | 4.5 | 20 | 50 | 6.0 |
| BPD-88-050 | 5.0 | 20 | 50 | 6.0 |
| BPD-88-055 | 5.5 | 20 | 50 | 6.0 |
| BPD-88-060 | 6.0 | 30 | 50 | 6.0 |
| BPD-88-070 | 7.0 | 30 | 50 | 8.0 |
| BPD-88-080 | 8.0 | 30 | 50 | 8.0 |
| BPD-88-090 | 9.0 | 30 | 50 | 10.0 |
| BPD-88-100 | 10.0 | 30 | 50 | 10.0 |
All Dimensions in MM
Also offered on request in :
- Inches sizes and intermediate sizes.
- Specific tolerances.
- Left hand/right hand cutting.
- Drill point geometry to suit application.
- Special coatings to enhance tool life.
- Shorter and longer flute length and overall length.
- Bigger shank diameters.
