Solid Carbide Conter Sink : BCS-09

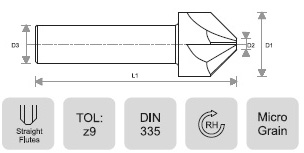

| PRODUCT CODE | CUTTER DIA | FRONTDIA | OVERALL LENGTH | SHANK DIA |
|---|---|---|---|---|
| D1 | D2 | L1 | D3 | |
| BCS-09-043 | 4.3 | 1.3 | 40.0 | 4.0 |
| BCS-09-050 | 5.0 | 1.5 | 40.0 | 4.0 |
| BCS-09-053 | 5.3 | 1.5 | 40.0 | 4.0 |
| BCS-09-058 | 5.8 | 1.5 | 45.0 | 5.0 |
| BCS-09-060 | 6.0 | 1.5 | 45.0 | 5.0 |
| BCS-09-063 | 6.3 | 1.5 | 45.0 | 5.0 |
| BCS-09-070 | 7.0 | 1.8 | 50.0 | 6.0 |
| BCS-09-073 | 7.3 | 1.8 | 50.0 | 6.0 |
| BCS-09-080 | 8.0 | 2.0 | 50.0 | 6.0 |
| BCS-09-083 | 8.3 | 2.0 | 50.0 | 6.0 |
| BCS-09-094 | 9.4 | 2.2 | 50.0 | 6.0 |
| BCS-09-100 | 10.0 | 2.5 | 50.0 | 6.0 |
| BCS-09-104 | 10.4 | 2.5 | 50.0 | 6.0 |
| BCS-09-115 | 11.5 | 2.8 | 56.0 | 8.0 |
| BCS-09-124 | 12.4 | 2.8 | 56.0 | 8.0 |
| BCS-09-134 | 13.4 | 2.9 | 56.0 | 8.0 |
| BCS-09-150 | 15.0 | 3.2 | 60.0 | 10.0 |
| BCS-09-165 | 16.5 | 3.2 | 60.0 | 10.0 |
| BCS-09-190 | 19.0 | 3.5 | 63.0 | 10.0 |
| BCS-09-205 | 20.5 | 3.5 | 63.0 | 10.0 |
| BCS-09-230 | 23.0 | 3.8 | 67.0 | 10.0 |
| BCS-09-250 | 25.0 | 3.8 | 67.0 | 10.0 |
| BCS-09-260 | 26.0 | 3.8 | 67.0 | 10.0 |
| BCS-09-280 | 28.0 | 4.0 | 71.0 | 12.0 |
| BCS-09-300 | 30.0 | 4.2 | 71.0 | 12.0 |
| BCS-09-310 | 31.0 | 4.2 | 71.0 | 12.0 |
All Dimensions in MM
Also offered on request in :
- Inches sizes and intermediate diameters.
- Different angle/profile.
- Left hand/right hand cutting.
- Lugged design for bigger diameters.
- Extended length.
- End cutting.
- Special coatings to enhance tool life.
- Special shank (Weldon, taper, etc.)
