Solid Carbide NC Spotting Drills : BND-95 90˚

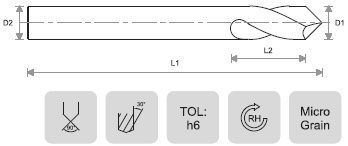

PRODUCT CODE DRILL DIA FLUTE LENGTH OVERALL LENGTH SHANK DIA
D1 L2 L1 D2
BND-95-030 3.0 12 46 3.0
BND-95-1/8 3.17 12 46 3.17
BND-95-040 4.0 12 55 4.0
BND-95-050 5.0 14 62 5.0
BND-95-060 6.0 16 66 6.0
BND-95-1/4 6.35 17 70 6.35
BND-95-070 7.0 17 70 7.0
BND-95-080 8.0 21 79 8.0
BND-95-090 9.0 22 84 9.0
BND-95-3/8 9.52 25 89 9.52
BND-95-100 10.0 25 89 10.0
BND-95-110 11.0 25 89 11.0
BND-95-120 12.0 30 102 12.0
BND-95-1/2 12.7 30 102 12.7
BND-95-130 13.0 30 102 13.0
BND-95-140 14.0 34 107 14.0
BND-95-5/8 15.87 38 115 15.87
BND-95-160 16.0 38 115 16.0
BND-95-170 17.0 40 122 17.0
BND-95-180 18.0 40 122 18.0
BND-95-190 19.0 40 122 19.0
BND-95-3/4 19.05 45 131 19.05
BND-95-200 20.0 45 131 20.0
BND-95-210 21.0 45 131 21.0
BND-95-220 22.0 45 131 22.0
BND-95-7/8 22.22 45 131 22.22
BND-95-250 25.0 53 151 25.0
BND-95-254 25.4 53 151 25.4
BND-95-280 28.0 53 151 28.0
BND-95-300 30.0 53 151 30.0
BND-95-320 32.0 53 151 32.0

All Dimensions in MM

Also offered on request in :

  • Intermediate sizes.
  • Left hand/right hand cutting.
  • Helical/straight flutes.
  • Drill point geometry to suit application.
  • Special coatings to enhance tool life.
  • Other drill point angle.
  • Other counter sink profile.
  • Extended length.
  • Lugged design for bigger body diameters.
  • Special shank (Weldon, etc.)
