Solid Carbide Key Seat Cutter : BKC-06

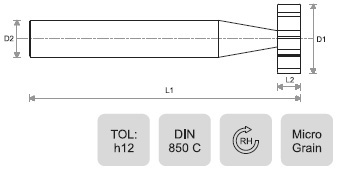

PRODUCT CODE CUTTER DIA CUTTER WIDTH OVERALL LENGTH SHANK DIA NO. OF TEETH
D1 L2 L1 L1 Z
BKC-06-045 4.5 1.0 50 6.0 8
BKC-06-075 7.5 1.5 50 6.0 8
BKC-06-076 7.5 2.0 50 6.0 8
BKC-06-105 10.5 2.0 50 6.0 10
BKC-06-106 10.5 2.5 50 6.0 10
BKC-06-107 10.5 3.0 50 6.0 10
BKC-06-135 13.5 3.0 56 10.0 10
BKC-06-136 13.5 4.0 56 10.0 10
BKC-06-137 16.5 3.0 56 10.0 10
BKC-06-165 16.5 4.0 56 10.0 10
BKC-06-166 16.5 5.0 56 10.0 10
BKC-06-167 19.5 4.0 63 10.0 12
BKC-06-195 19.5 5.0 63 10.0 12
BKC-06-196 19.5 6.0 63 10.0 12
BKC-06-197 22.5 5.0 63 10.0 12
BKC-06-225 22.5 6.0 63 10.0 12
BKC-06-226 22.5 8.0 63 10.0 12
BKC-06-227 25.5 6.0 63 10.0 14
BKC-06-228 28.5 6.0 63 10.0 16
BKC-06-229 28.5 8.0 63 12.0 16
BKC-06-230 28.5 10.0 63 12.0 16
BKC-06-231 32.5 8.0 71 12.0 18
BKC-06-285 32.5 10.0 71 12.0 18
BKC-06-286 45.5 10.0 71 12.0 22

All Dimensions in MM

Also offered on request in :

  • Inches sizes and intermediate diameters.
  • Intermediate thickness.
  • Left hand/right hand helix/straight flutes/alternating flutes.
  • Special corner chamfer/radius.
  • Lugged/tipped design.
  • Extended length and neck length.
  • Special neck diameter.
  • Various numbers of flutes.
  • Special coatings to enhance tool life.
  • Special shank (Weldon, whistle notch, etc.)
