Solid Carbide Concave Cutter : BCC-08

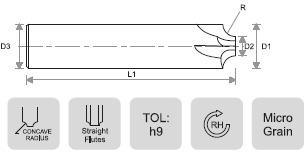

| PRODUCT CODE | RADIUS | CUTTER DIA | FRONTDIA | SHANK DIA | OVERALL LENTGH |
|---|---|---|---|---|---|
| R | D1 | D2 | D3 | L1 | |
| BCC-08-005 | 0.5 | 6.0 | 5.0 | 6.0 | 65 |
| BCC-08-010 | 1.0 | 6.0 | 4.0 | 6.0 | 65 |
| BCC-08-015 | 1.5 | 8.0 | 5.0 | 8.0 | 75 |
| BCC-08-020 | 2.0 | 8.0 | 4.0 | 8.0 | 75 |
| BCC-08-025 | 2.5 | 10.0 | 5.0 | 10.0 | 75 |
| BCC-08-030 | 3.0 | 10.0 | 4.0 | 10.0 | 75 |
| BCC-08-035 | 3.5 | 12.0 | 5.0 | 12.0 | 75 |
| BCC-08-040 | 4.0 | 12.0 | 4.0 | 12.0 | 75 |
| BCC-08-045 | 4.5 | 16.0 | 7.0 | 16.0 | 75 |
| BCC-08-050 | 5.0 | 16.0 | 6.0 | 16.0 | 75 |
| BCC-08-055 | 5.5 | 20.0 | 9.0 | 20.0 | 80 |
| BCC-08-060 | 6.0 | 20.0 | 8.0 | 20.0 | 80 |
| BCC-08-065 | 6.5 | 25.0 | 12.0 | 25.0 | 80 |
| BCC-08-070 | 7.0 | 25.0 | 11.0 | 25.0 | 80 |
| BCC-08-075 | 7.5 | 25.0 | 10.0 | 25.0 | 80 |
| BCC-08-080 | 8.0 | 25.0 | 9.0 | 25.0 | 80 |
| BCC-08-085 | 8.5 | 28.0 | 11.0 | 25.0 | 80 |
| BCC-08-090 | 9.0 | 28.0 | 10.0 | 25.0 | 80 |
| BCC-08-095 | 9.5 | 28.0 | 9.0 | 25.0 | 80 |
| BCC-08-100 | 10.0 | 28.0 | 8.0 | 25.0 | 80 |
All Dimensions in MM
Also offered on request in :
- Inches sizes and intermediate diameters.
- Different corner radius/profile.
- Left hand/right hand cutting.
- Lugged design for bigger diameters.
- Extended length.
- End cutting.
- Special coatings to enhance tool life.
- Special shank (Weldon, taper, etc.)
