Solid Carbide T Slot : BTC-07

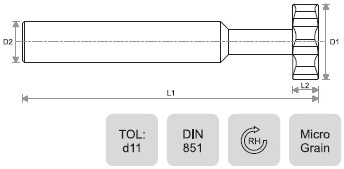

PRODUCT CODE FOR SLOT CUTTER DIA CUTTER WIDTH OVERALL LENGTH SHANK DIA NO. OF TEETH
D1 L2 L1 L1 Z
BTC-07-006 6.0 12.5 6.0 57 10.0 6
BTC-07-080 8.0 16.0 8.0 62 10.0 6
BTC-07-100 10.0 18.0 8.0 70 12.0 6
BTC-07-101 10.0 19.0 9.0 71 12.0 6
BTC-07-120 12.0 21.0 9.0 74 12.0 8
BTC-07-121 12.0 22.0 10.0 75 12.0 8
BTC-07-140 14.0 25.0 11.0 82 16.0 8
BTC-07-160 16.0 28.0 12.0 85 16.0 8
BTC-07-180 18.0 32.0 14.0 90 16.0 8
BTC-07-200 20.0 36.0 16.0 103 25.0 10
BTC-07-220 22.0 40.0 18.0 108 25.0 10
BTC-07-240 24.0 45.0 20.0 113 25.0 10
BTC-07-280 28.0 50.0 22.0 124 32.0 12
BTC-07-360 36.0 60.0 28.0 128 32.0 12
BTC-07-361 - 80.0 30.0 128 32.0 12
BTC-07-362 - 100.0 30.0 128 32.0 12

All Dimensions in MM

Also offered on request in :

  • Inches sizes and intermediate diameters.
  • Intermediate thickness.
  • Left hand/right hand helix/straight flutes/alternating flutes.
  • Special corner chamfer/radius.
  • Special OD profile
  • Lugged/tipped design.
  • Extended length and neck length.
  • Special neck diameter.
  • Various numbers of flutes.
  • Special coatings to enhance tool life.
  • Special shank (Weldon, whistle notch, etc.)
